SPECIFICATIONS

Power Mode: Uncharged

Battery Properties: Non-rechargeable Battery

Non-rechargeable Battery: Other Batteries

Item ID: 12W539VQG

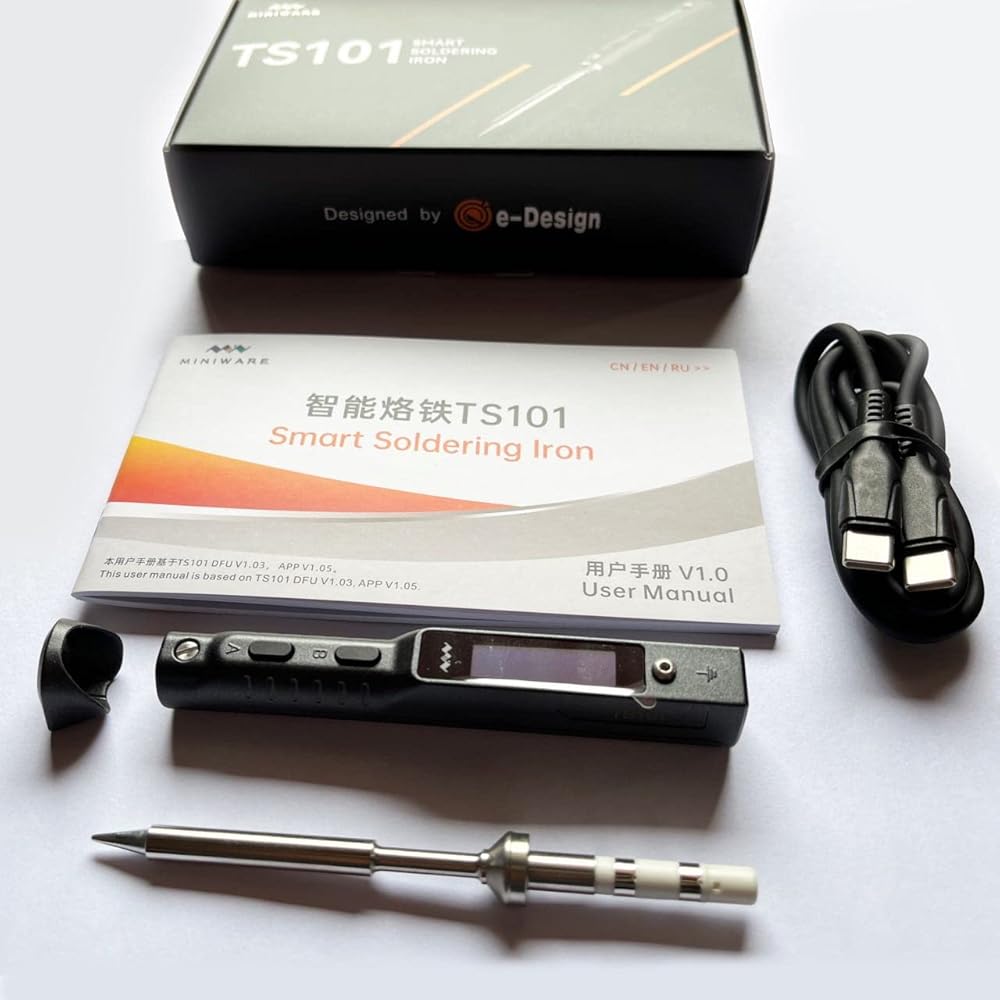

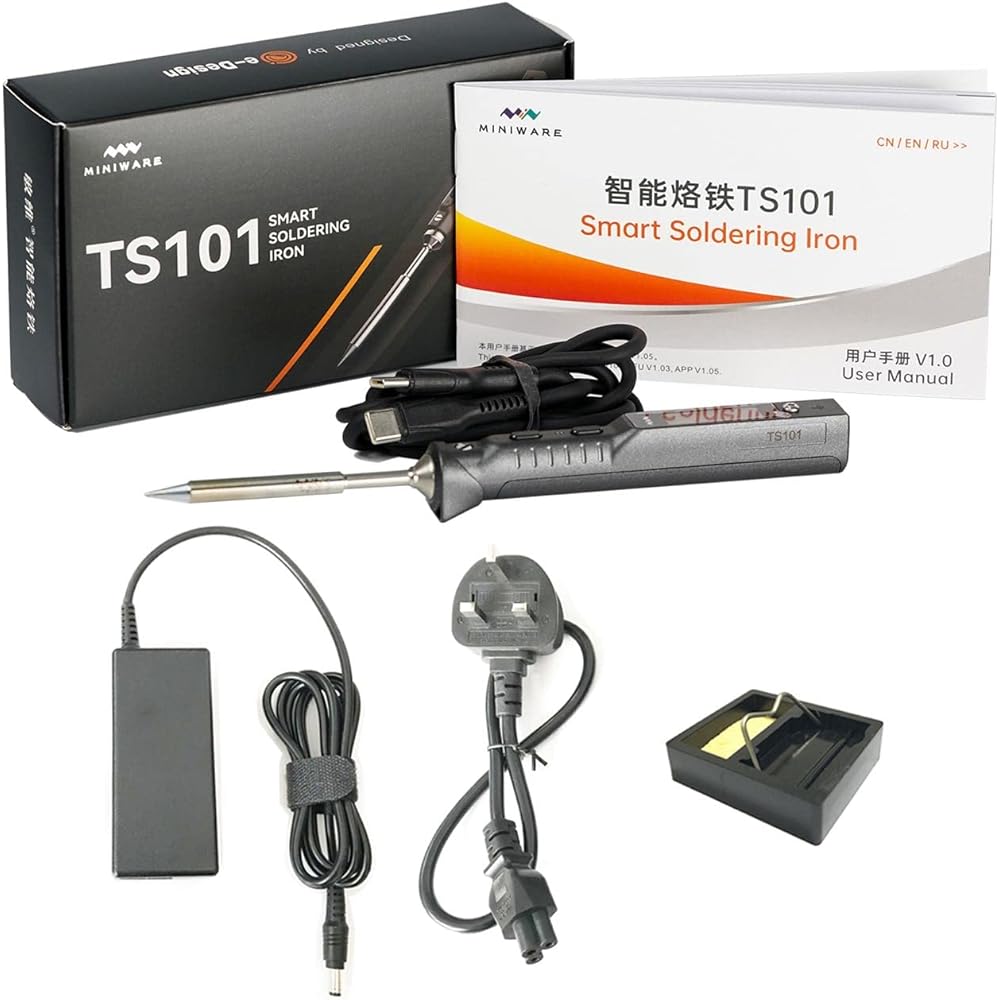

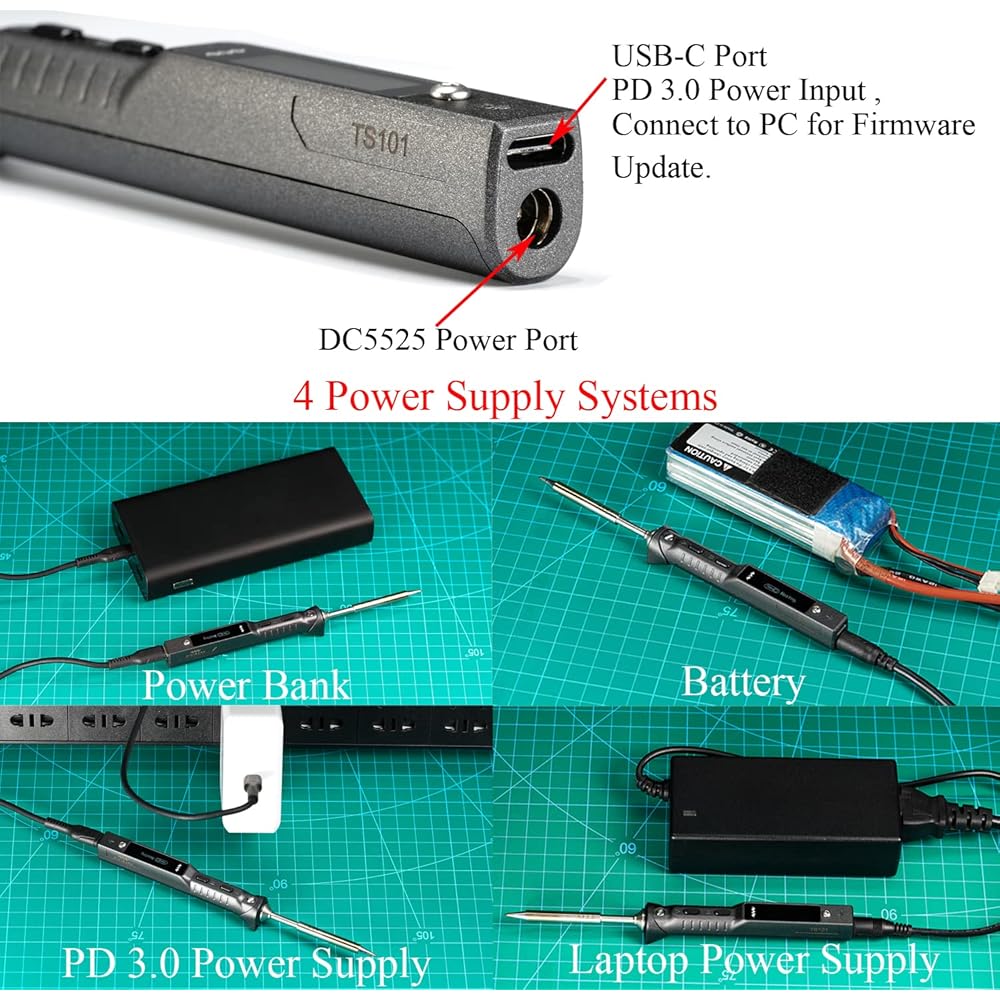

TS101 is an upgraded version of Mini Soldering Iron TS100.We provide a 24V/3A UK standard power supply , so 0-300 °C heat up takes less than 10 secondsTS101 controller has a and tough overall appearance, and uses a larger 128*32 pixel OLED screen to display more heating data.The tip insertion end of controller fixes the soldering tip with a ball screw, no hex screw to loosen before inserting and removing a tip.And TS101 uses TS100 soldering iron tip.TS101 uses DC and PD dual power input. The power range of the popular DC5525 interface has been extended to DC 9-24V (up to 65W). A USB-C interface replaces the original Micro USB interface, which serves for firmware upgrade, and a standard PD power input up to 45W.The temperature adjustment range has also been optimized to 50-400℃ for more application scenarios.Boost mode, Sleep mode, auto screen off,customized LOGO, low current (wakeup), firmware upgrade. The newly added “Boost” heating function can quickly heat up in a short time to meet the welding needs of special scenes.
